Brackets
We offer a wide range of Brackets to support the Glazing Box system. From external to internal, lightweight to strong and robust, we can provide simple solutions for you. Additionally, we can fabricate a wide range of custom brackets upon request depending on requirements
Brackets

Saddle Brackets are used for mounting the Clearspan Box system to a supporting Bearer. The bracket is supplied with 8 Stainless Steel Tek screws and can be powder coated to match the structure. Made from Aluminium and available in 50mm, 75mm and 100mm widths, depending on requirements.

Hanger Brackets are used for externally attaching the Clearspan Box System to a wall or face fixed to a Bearer. The bracket is supplied with 8 Stainless Steel Tek screws and can be powder coated to match the structure. Made from Aluminium and designed to support longer rafter spans.

Internal Brackets are used for internally attaching the Clearspan Box System to a wall or face fixed to a Bearer. The bracket is supplied with 4 Stainless Steel Tek screws and is supplied in Mill Finish. Made from Aluminium and designed to provide a cleaner finish for shorter rafter spans.

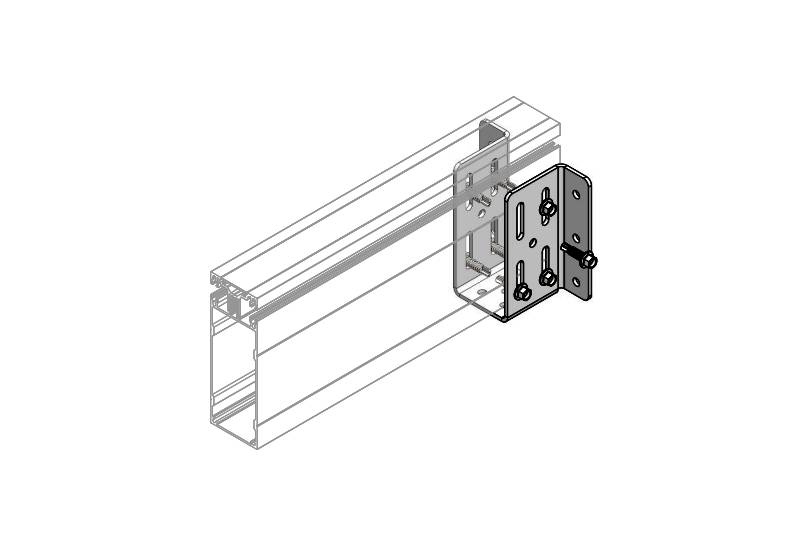

Our custom made Post to Bearer Brackets are designed to slot into a 100x100mm Post and support the 150x100mm Bearer. Strong and durable, these brackets are the cornerstone of the UGS Glazing Box system. The bracket is supplied with fitted rivnuts, nuts, bolts, washers and button socket screws and can be powder coated to match the structure.


We can fabricate a wide range of custom brackets for almost any situation. Understanding that every house and structure is unique, we can engineer, design and fabricate brackets tailored to each individual projects’ needs.
Contact Us for pricing, design assistance or other enquiries for our wide range of Custom Brackets.
